The assembly of socket copper head body is an important part of electronic manufacturing, mainly involving the assembly and connection of electronic components. The following is relevant information about the assembly of the socket copper head body:

1. Assembly method of socket copper head

The copper head of the socket is a key component used to connect the power supply after being connected to the circuit of electronic components. At present, the assembly of copper heads has achieved full automation, and through automated assembly equipment, production efficiency and assembly accuracy can be greatly improved.

2. Automated assembly technology

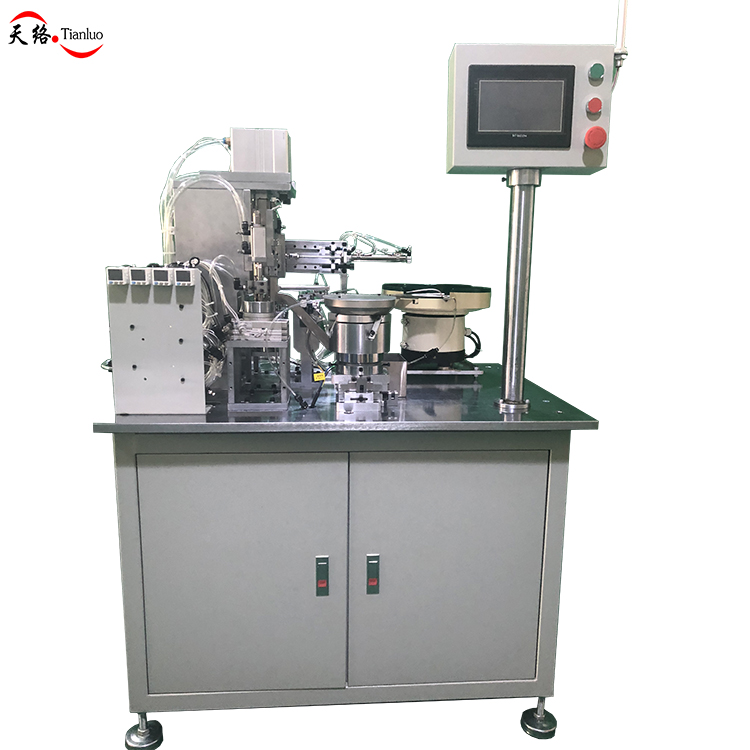

Automated assembly machine: Modern socket copper head assembly usually uses automated assembly equipment, which can achieve automatic installation and output of copper heads.

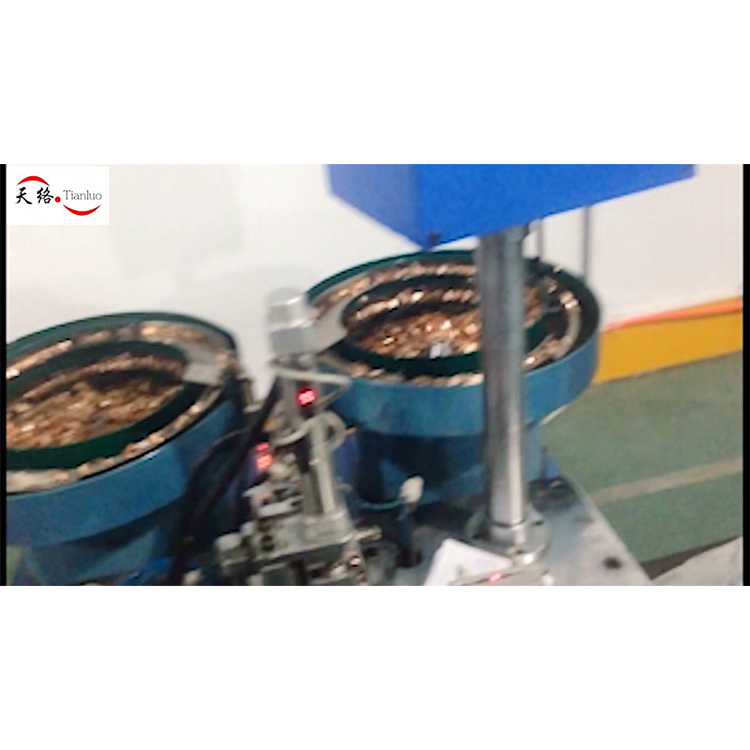

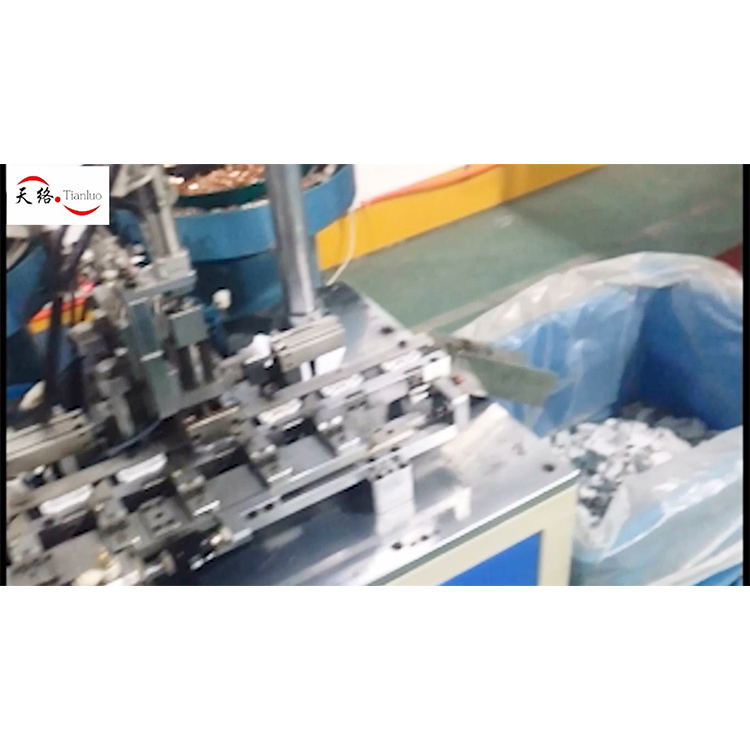

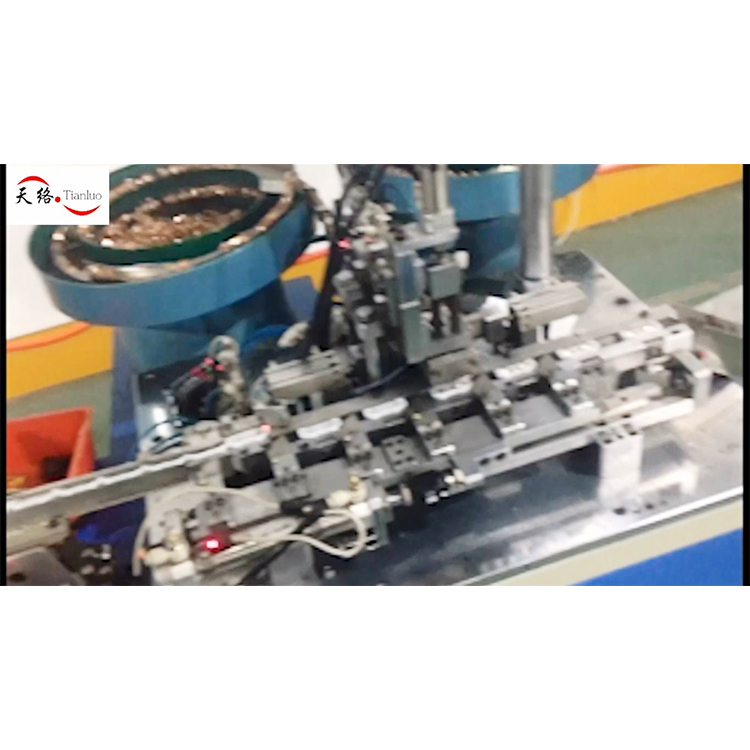

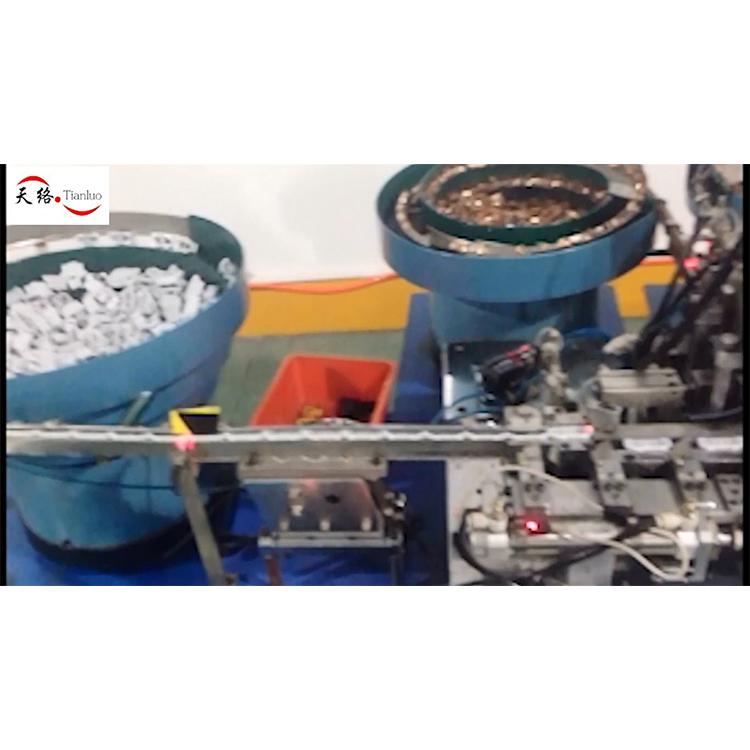

Working principle: Automated assembly machines typically include components such as frames, turntables, rotating shafts, and motors. There are multiple workbenches on the turntable for completing the assembly of copper heads. Through the spiral conveyor disc, accessories can be automatically transported to the workbench, and after assembly, the copper head can be automatically output.

3. Internal structure and assembly of socket

Internal layout: The socket usually includes AC socket module, PCB board, USB module, etc. These modules are connected by copper strips or wires to achieve power on and functional control.

Copper head connection: The connection between the copper head and the PCB board is usually achieved through soldering. For example, in some fast charging sockets, the copper head is connected to the PCB board through wire soldering for power supply.

4. Quality control after assembly

Automated detection: During the automated assembly process, the equipment can integrate detection functions to ensure accurate installation position and reliable connection of copper heads.

Manual intervention: Although the degree of automation is high, in some cases, manual inspection of the assembled copper heads is still required to ensure their quality and performance.

5. Application scenarios

Household socket: In traditional household sockets, copper head assembly is mainly used to ensure stable connection between the plug and the power source.

Fast charging socket: In the fast charging socket, the copper head not only needs to ensure stable power transmission, but also needs to work together with the USB module to achieve fast charging function.

Through automation technology and precise assembly processes, the assembly of socket copper heads has become more efficient and reliable, providing important guarantees for the stable operation of electronic products.
