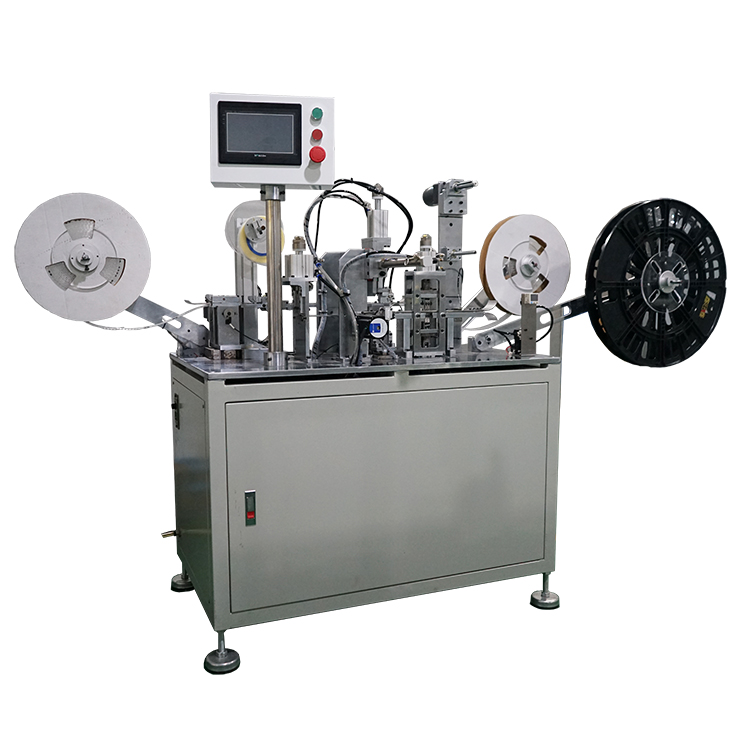

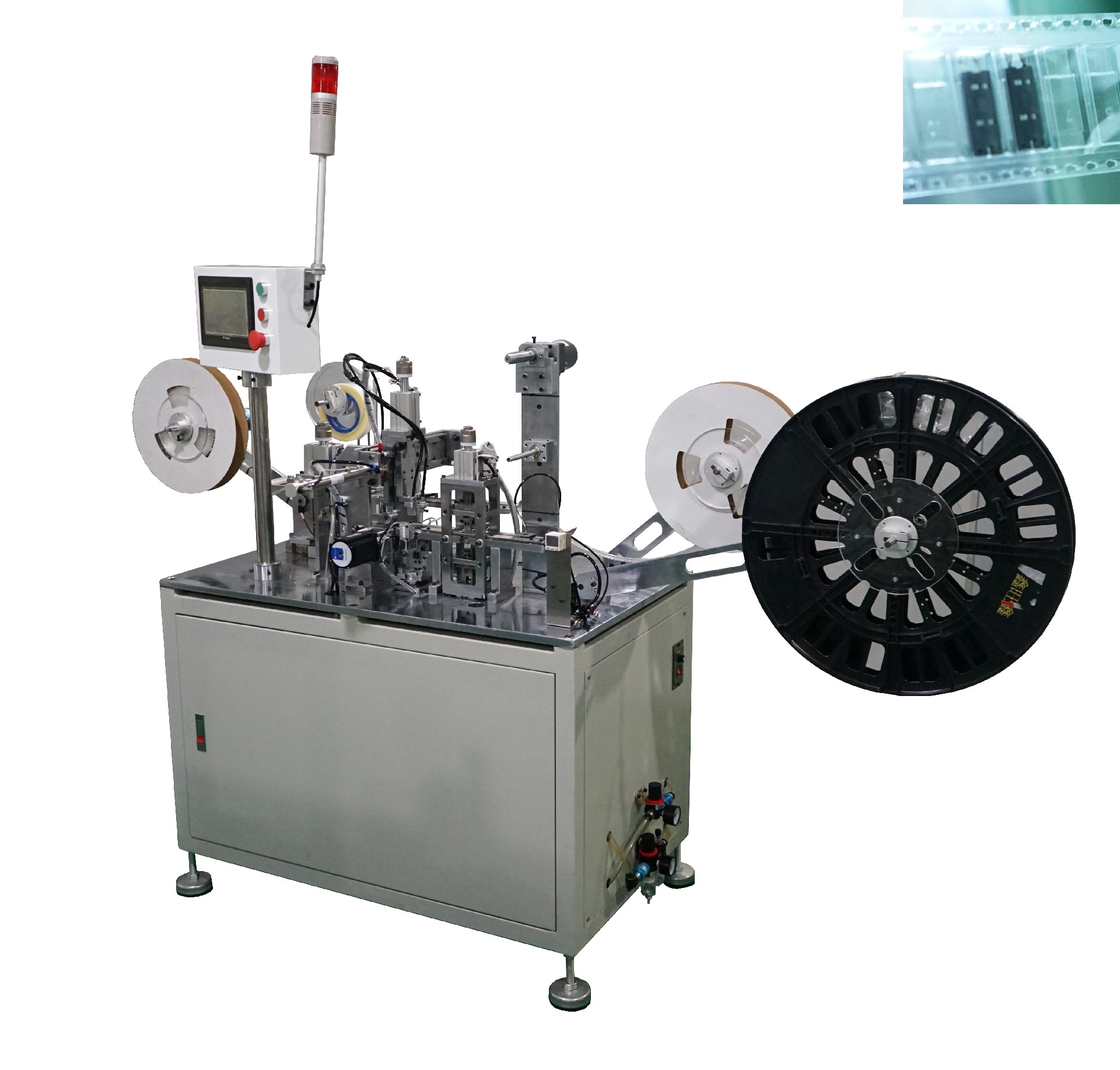

Tape weaving machine is an automated equipment used for packaging and assembling electronic components, widely used in the electronic manufacturing industry. The following is a detailed introduction about the weaving machine:

1、 Definition

The tape machine, also known as the electronic component automatic packaging machine, is mainly used to neatly arrange small electronic components (such as resistors, capacitors, transistors, etc.) in a predetermined order and spacing on a carrier tape, and seal them with a cover tape to form a roll type supply carrier that is convenient for automated mounting.

2、 Working principle

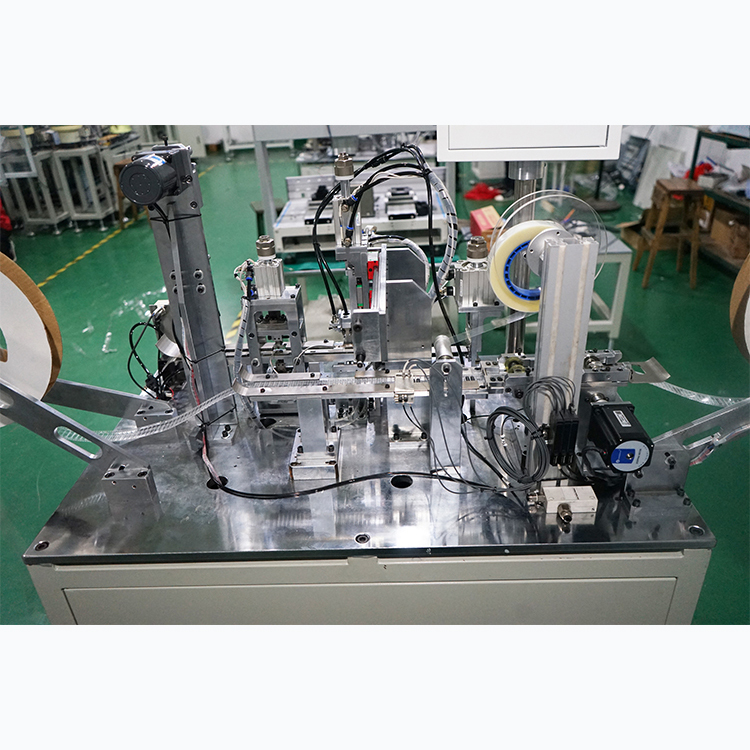

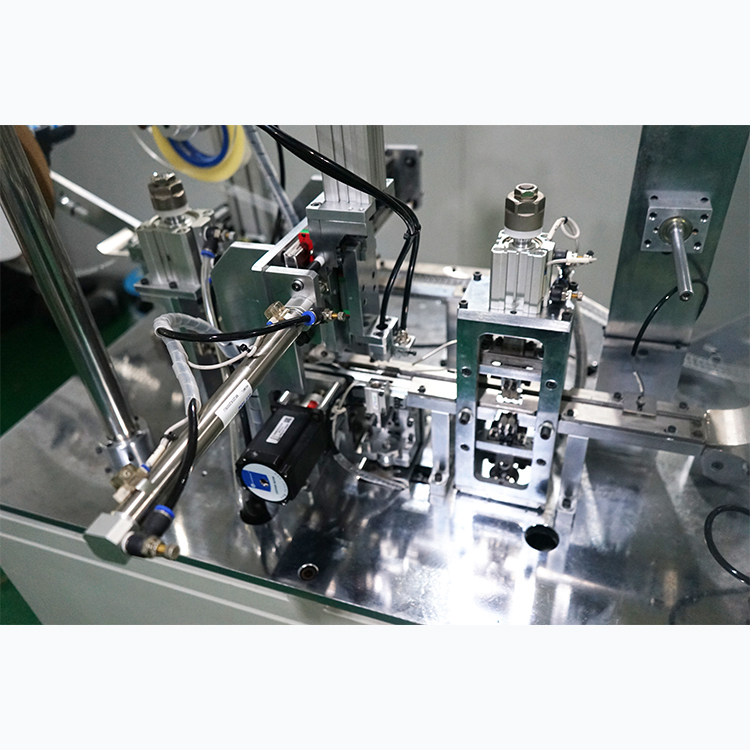

Automation process: The weaving machine achieves full automation from material feeding, direction confirmation, material retrieval to weaving through the combination of electricity and gas.

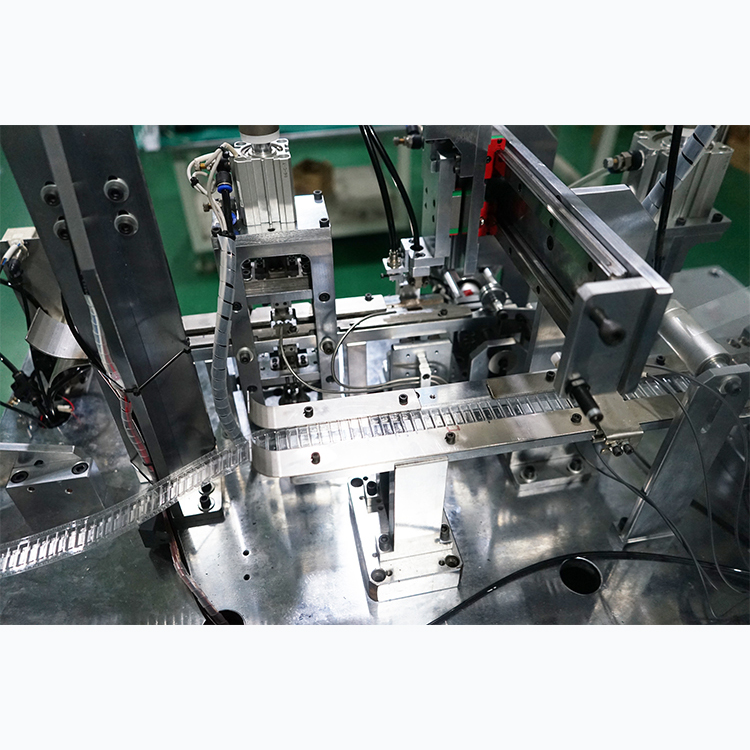

Packaging method: According to packaging requirements, tape machines can be divided into two types: hot packaging and cold packaging. Hot sealing uses a heating blade to bond the cover tape and carrier tape, while cold sealing uses a sticky cover tape.

Detection and counting: Before packaging, the carrier tape will be counted and material controlled by sensors to ensure that there are no missing components. Once an abnormality is detected, the machine will automatically stop.
