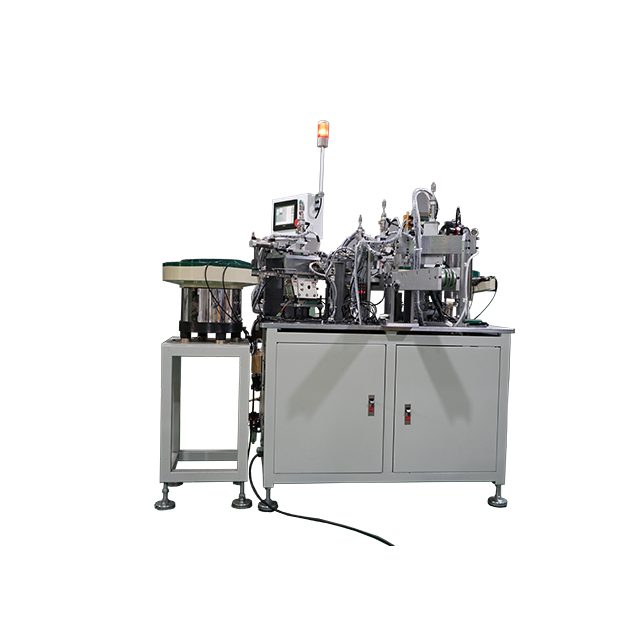

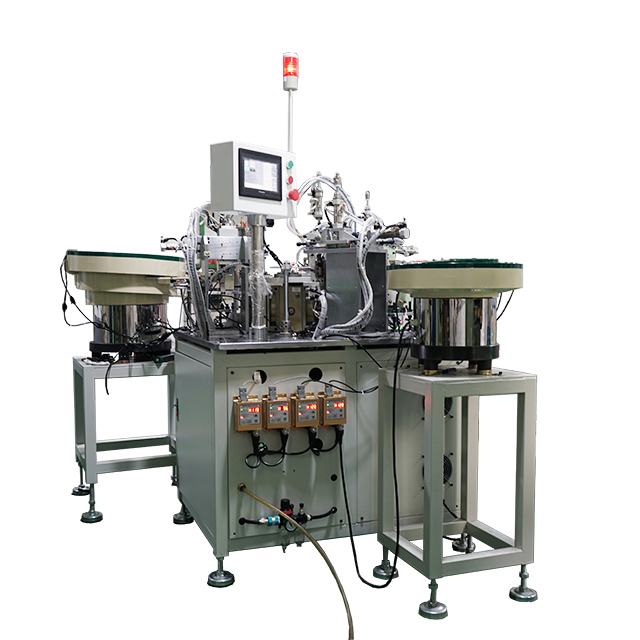

The switch seat assembly machine is an automated equipment specifically designed for the assembly of switch components, capable of efficiently completing processes such as switch assembly, testing, and packaging. It is widely used in the fields of electronics, electrical, and mechanical manufacturing. The following is a detailed introduction to the working principle, functional characteristics, and advantages of the switch base assembly machine:

working principle

The working principle of the switch base assembly machine mainly includes the following steps:

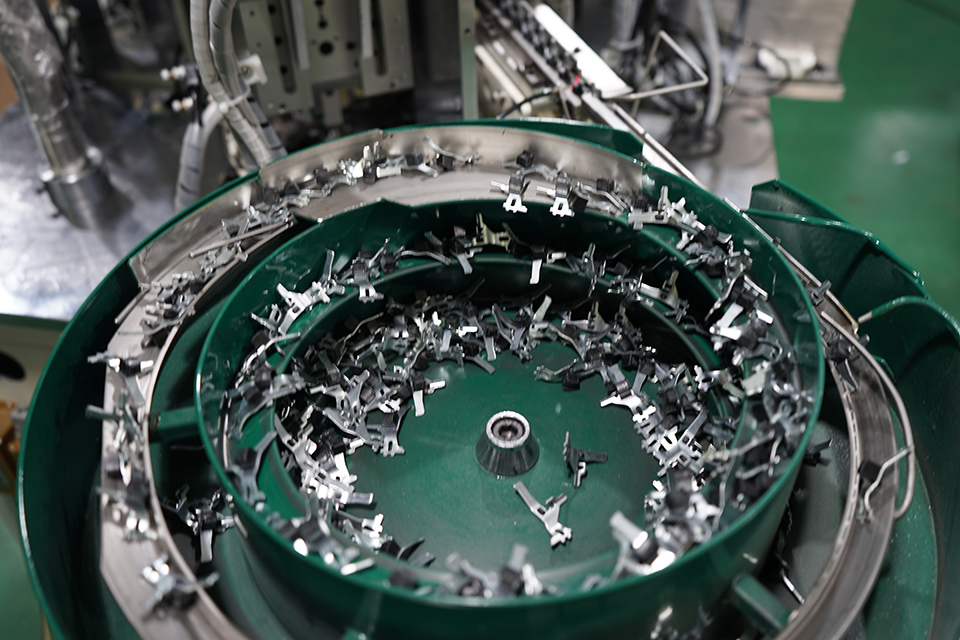

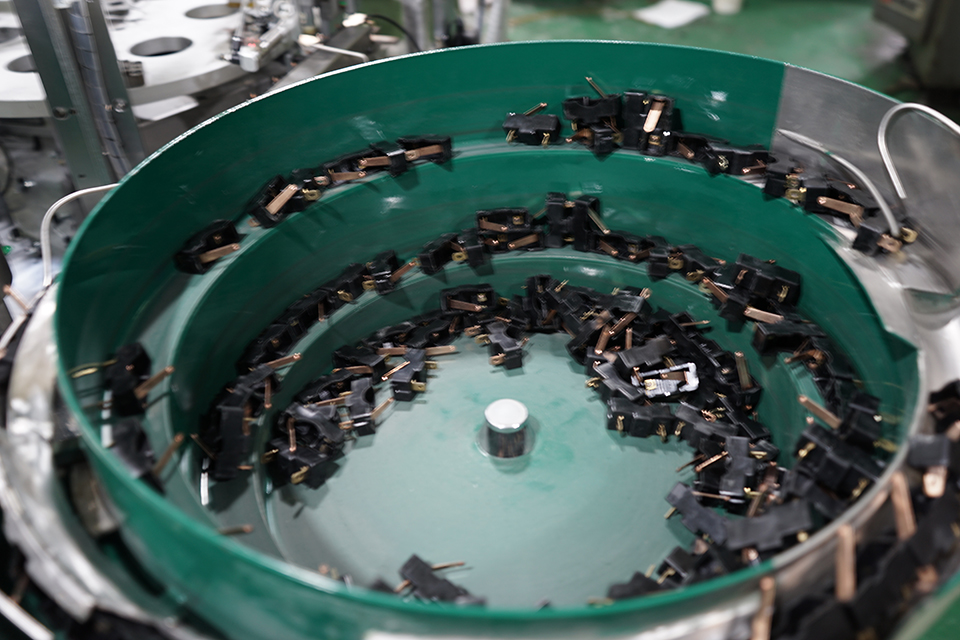

Parts supply: The various components of the switch base (such as housing, buttons, springs, contacts, etc.) are automatically transported to the assembly position through an automatic feeding system, such as a vibrating disc, conveyor belt, or disc feeder.

Positioning and Alignment: Using positioning devices or robotic arms, accurately place the parts onto the assembly platform to ensure the accuracy of subsequent assembly.

Component assembly: By mechanical actions such as pressing, clamping, and rotating, various components are assembled together in sequence to form a complete switch base.

Welding and Inspection: Some equipment will perform welding operations to enhance the firmness of the connection, and the welding quality will be detected through visual inspection or sensors.

Quality inspection: Conduct electrical performance testing, contact testing, and visual inspection on the assembled switches to ensure product quality.

Sorting and packaging: Separate qualified products from unqualified products and package qualified products.

Functional Features

High degree of automation: The equipment can achieve full process automation from parts supply to product packaging, reducing manual intervention.

High precision assembly: precise positioning and assembly are achieved through robotic arms and visual systems to ensure consistency and stability in product quality.

Intelligent detection: equipped with multiple detection functions, such as electrical performance testing and appearance inspection, to monitor product quality in real time.

Flexible configuration: Equipment parameters can be quickly adjusted according to the specifications and design requirements of different switch bases.
